Label production machinery

Alongside labels, ribbons, and barcode hardware, we supply the machinery that produces them: flexographic printing, die cutting, slitting, sheeting, rewinding, and inspection.

Flexographic Printing

3 machines

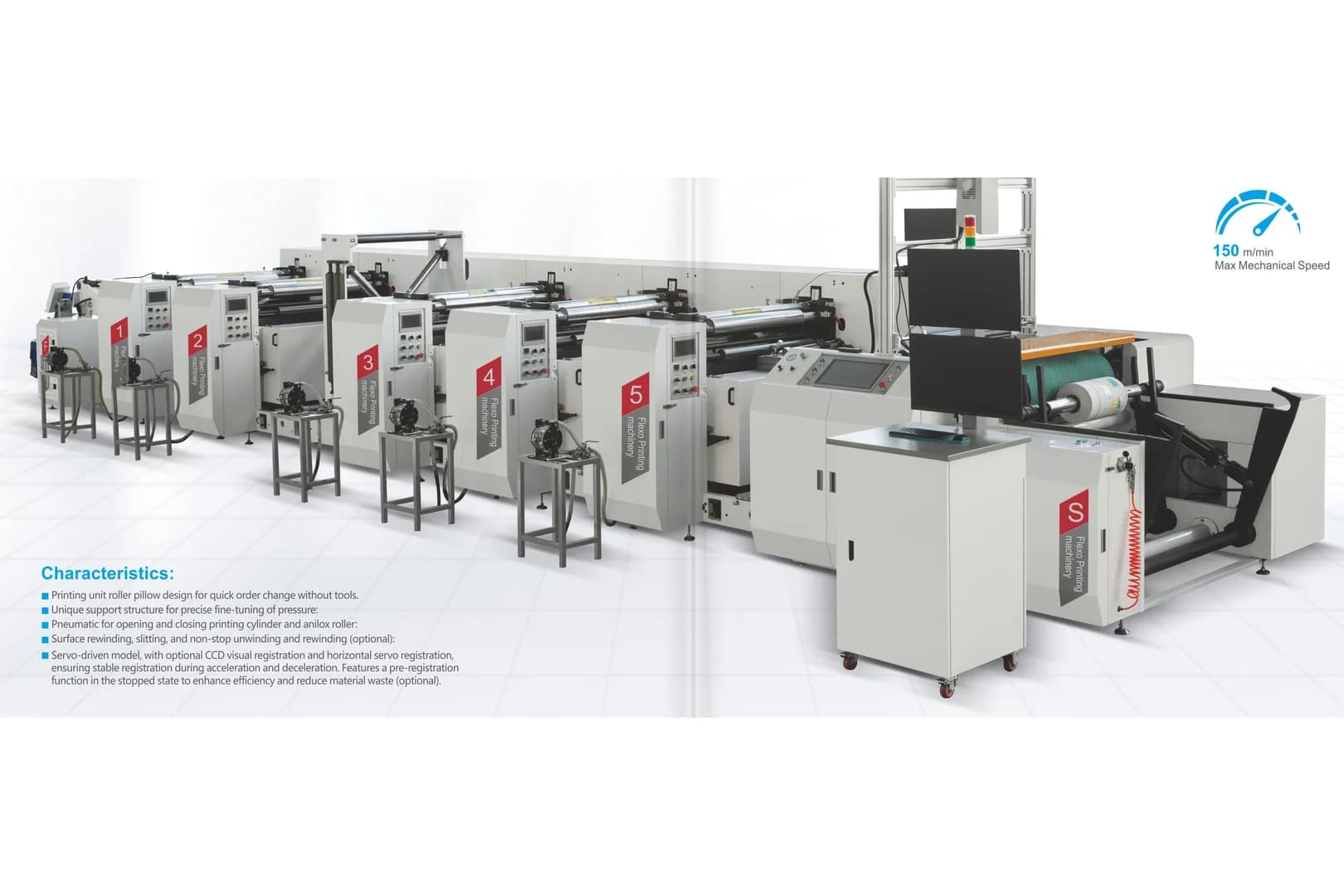

  • A six unit servo driven flexographic printing line
    • SR-650
    • SR-850
    • SR-1050
    • SR-1250
    • SR-1450
    • SR-1650

    Fully Servo Petal Unit Flexographic Printing Machine

    Wide web flexographic press in six widths, from 650mm to 1650mm printing width.

    150m/min max mechanical speed

    • Printing unit roller pillow design for quick order change without tools.
    • Unique support structure for precise fine-tuning of pressure.
    • Pneumatic opening and closing of printing cylinder and anilox roller.
    • Surface rewinding, slitting, and non-stop unwinding and rewinding (optional).
    • Servo-driven, with optional CCD visual registration and horizontal servo registration, holding registration through acceleration and deceleration. Pre-registration in the stopped state reduces material waste (optional).
    Technical parameters
    Technical parameters for the Fully Servo Petal Unit Flexographic Printing Machine
    ParameterSR-650SR-850SR-1050SR-1250SR-1450SR-1650
    Max paper width660mm860mm1060mm1260mm1460mm1660mm
    Max printing width650mm850mm1050mm1250mm1450mm1650mm
    Repeat printing length206-619mm206-619mm206-619mm206-619mm206-619mm206-619mm
    Max winding diameter1200mm1200mm1200mm1200mm1200mm1200mm
    Gear specification1/8CP1/8CP1/8CP1/8CP1/8CP1/8CP
    Max mechanical speed150m/min150m/min150m/min150m/min150m/min150m/min
    Air pressure100PSI (0.6MPa)100PSI (0.6MPa)100PSI (0.6MPa)100PSI (0.6MPa)100PSI (0.6MPa)100PSI (0.6MPa)

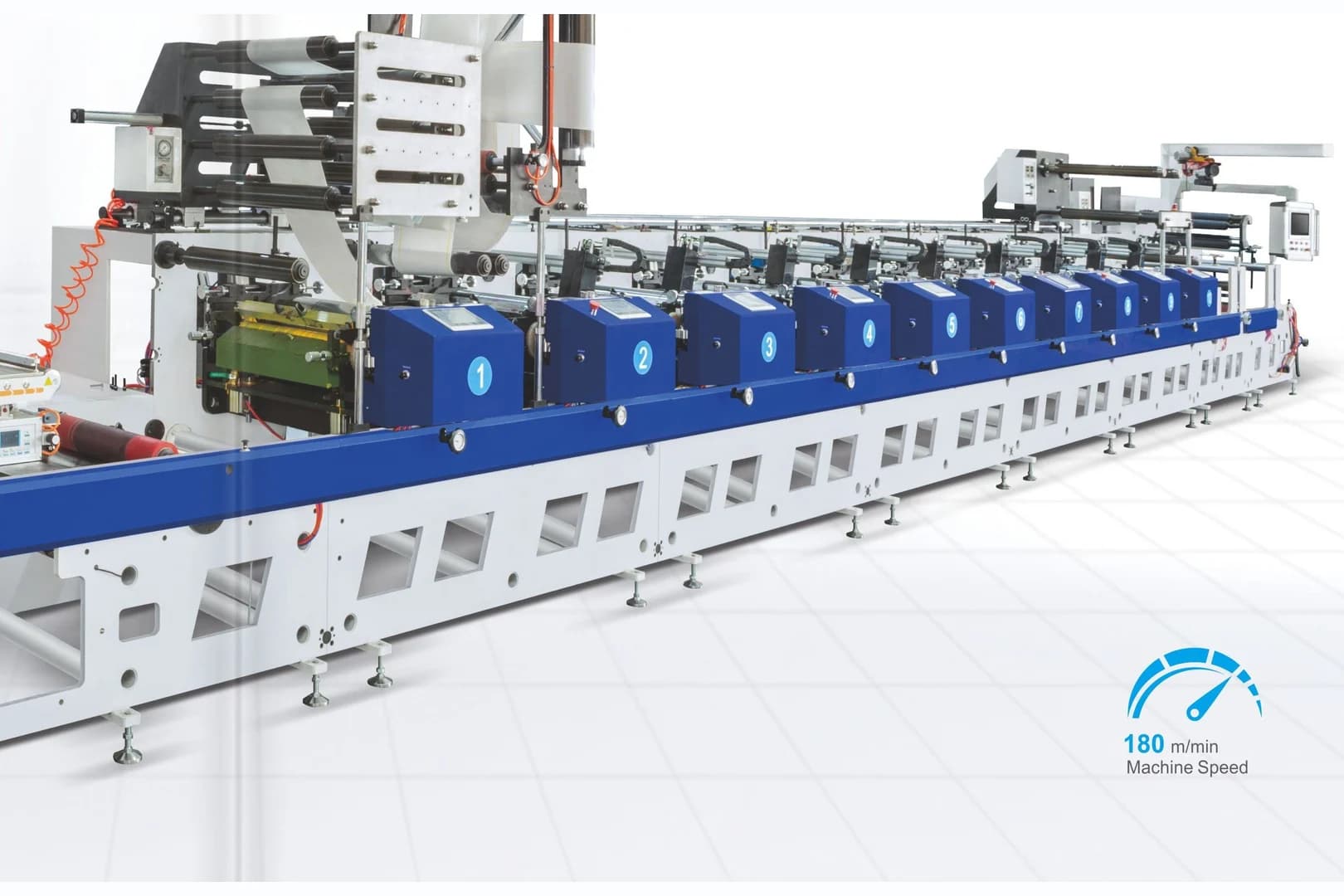

  • An eight colour narrow web flexographic press
    • SR-350-8

    Flexographic Printing Machine

    Eight colour narrow web flexo press on full servo drive, for label stock, film, and foil.

    180m/min machine speed

    • Suitable for printing label, paper, film (PET, OPP, PVC), aluminium foil, and other materials.
    • ABB servo motors throughout, holding register accuracy as speed rises and falls.
    • Runs water based ink, LED UV ink, or UV ink depending on the material.
    • Petal type printing structure, so changing a printing cylinder is quick.
    • High speed, max speed is 150m/min.
    Technical parameters
    Technical parameters for the Flexographic Printing Machine
    ParameterValue
    Unwinding/rewinding diameter1000mm
    Printing repeat181mm-600mm
    Max width350mm
    Max printing width340mm
    Material thickness30-300gsm paper, PET 12-60um, OPP 18-60um
    Gear pitch1/8 inch (3.175mm)
    Printing plate thickness1.7mm
    Double glue tape thickness0.38mm
    Printing precision±0.1mm
    Power supply380V 3PH 50Hz
    Machine speed0-180m/min
    Air compressor100PSI (0.6MPa)
    Tension area5-100kg
    Rewinding motor4KW
    Printing servo motor1.8KW
    Traction servo motor2.9KW

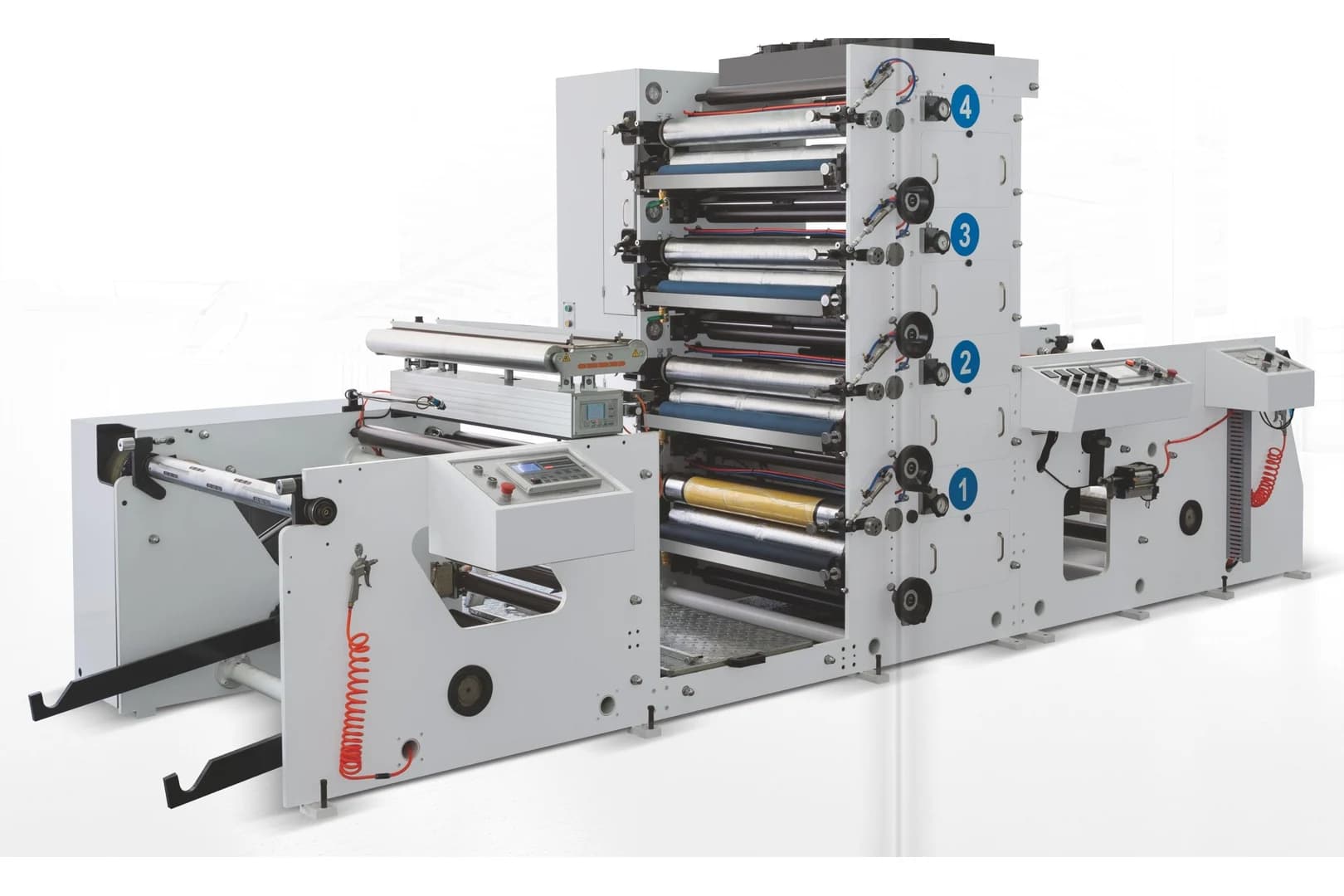

  • A four colour stack flexographic press with die-cutting unit
    • SR-850-4

    4-Color Stack Flexographic Printing Machine

    Four colour stack press with a die-cutting unit built into the same line.

    100m/min design speed

    • Four flexographic printing units and a die-cutting unit in one system, at 860mm web width and 850mm printing width, with repeat lengths from 180.975mm to 400mm.
    • 1200mm large diameter unwinding and rewinding with pneumatic shaft automatic switching devices for continuous production.
    • PLC control reaching ±0.1mm registration accuracy, with Dexin Technology EPC automatic edge guiding, 20CrMnTi ground gears at 58HRC, and NSK bearings.
    • Tension control accurate to ±0.5kg and adjustable from 10 to 200kg.
    • Each printing unit carries a ceramic anilox roll and reverse doctor blade, with infrared drying to a maximum of 80C and independent control per colour.
    • 45# steel 20mm thick wall panel structure with white anti-rust coating, Schneider electrical components, automatic paper break detection, and CE compliance at 380V 3PH 50Hz.
    Technical parameters
    Technical parameters for the 4-Color Stack Flexographic Printing Machine
    ParameterValue
    Max unwinding diameter1200mm
    Max rewinding diameter1200mm
    Printing length180.975mm-400mm
    Max web width860mm
    Max printing width850mm
    Registration accuracy±0.1mm
    Gear specification1/8CP, 3.175mm pitch
    Power requirement380V 3PH 50Hz
    Machine design speed0-100m/min
    Plate thickness1.7mm
    Mounting tape thickness0.38mm
    Substrate30-300gsm paper
    Machine frame20mm thick wall panels

Die Cutting

5 machines

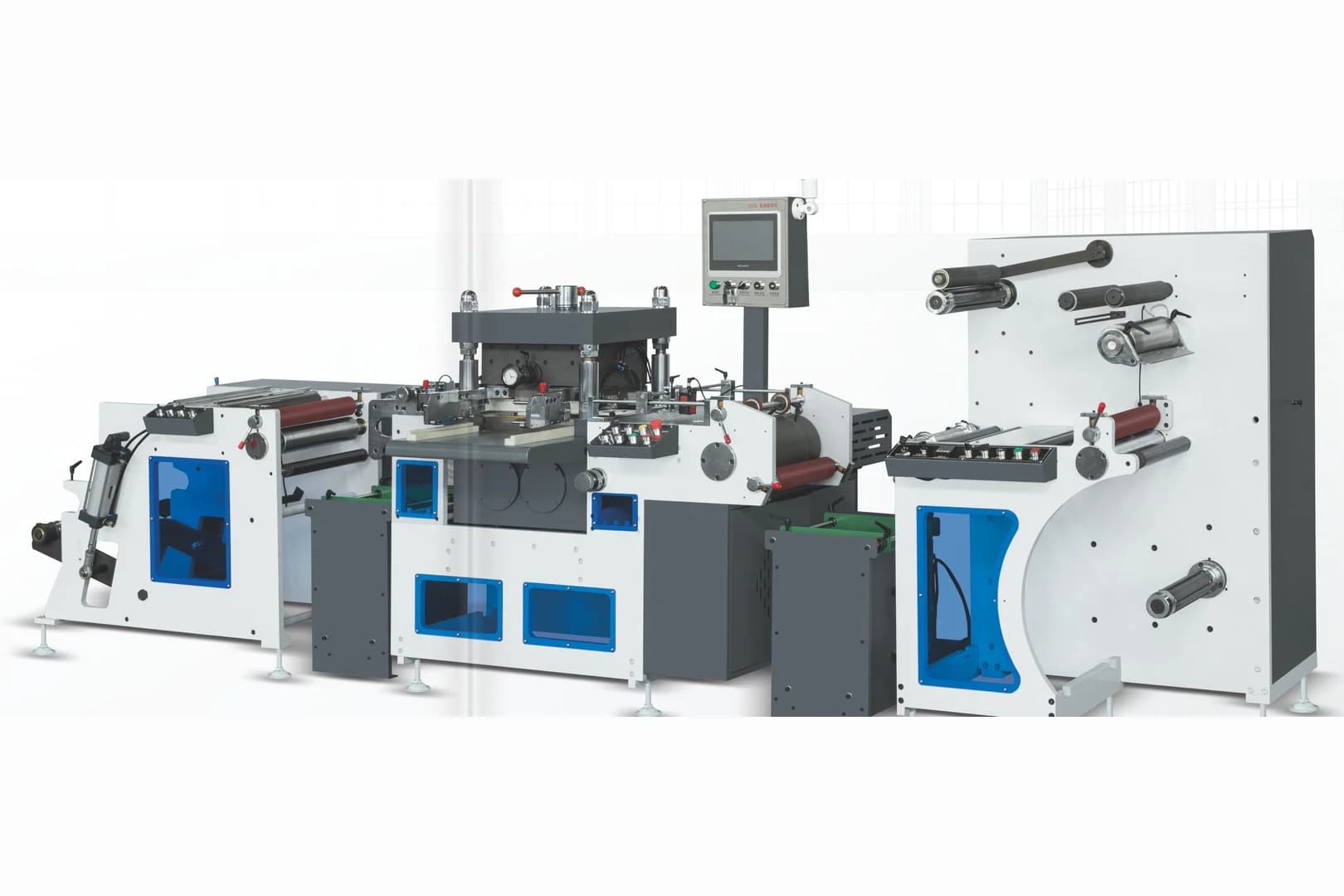

  • A high speed flat bed label die cutting machine
    • SR-350G
    • SR-450G

    High Speed Die Cutting Machine

    Flat bed die cutter running 24,000 impressions an hour, matched to flexo, satellite, PS, and intermittent presses.

    24,000impressions per hour

    • Motion controller and servo integrated intelligent control.
    • 24,000 impressions per hour, 4,800 metres per hour, holding accuracy at speed.
    • Wooden or rubber knife plates, simple and durable.
    • Feeding and discharging shafts inflate and tension automatically, with automatic lubrication on the power system.
    • Imported accessories, electrics, optical eyes, bearings, and servo motors.
    • Discharging, stamping, die-cutting, waste disposal, winding, and flat cutting all run under one computer.
    Technical parameters
    Technical parameters for the High Speed Die Cutting Machine
    ParameterSR-350GSR-450G
    Max feeding width350mm450mm
    No.1 cutting area340 x 340mm440 x 440mm
    Max speed24000 times/h24000 times/h
    Max length of meter80m/min80m/min
    Position accuracy±0.1mm±0.1mm
    Max unwinder diameter800mm800mm
    Max rewinder diameter800mm800mm
    Voltage3-phase 380V3-phase 380V
    Gross power11kw13.5kw
    Weight2800kg3500kg
    Dimensions (LxWxH)4505 x 1605 x 1670mm4700 x 1870 x 1670mm

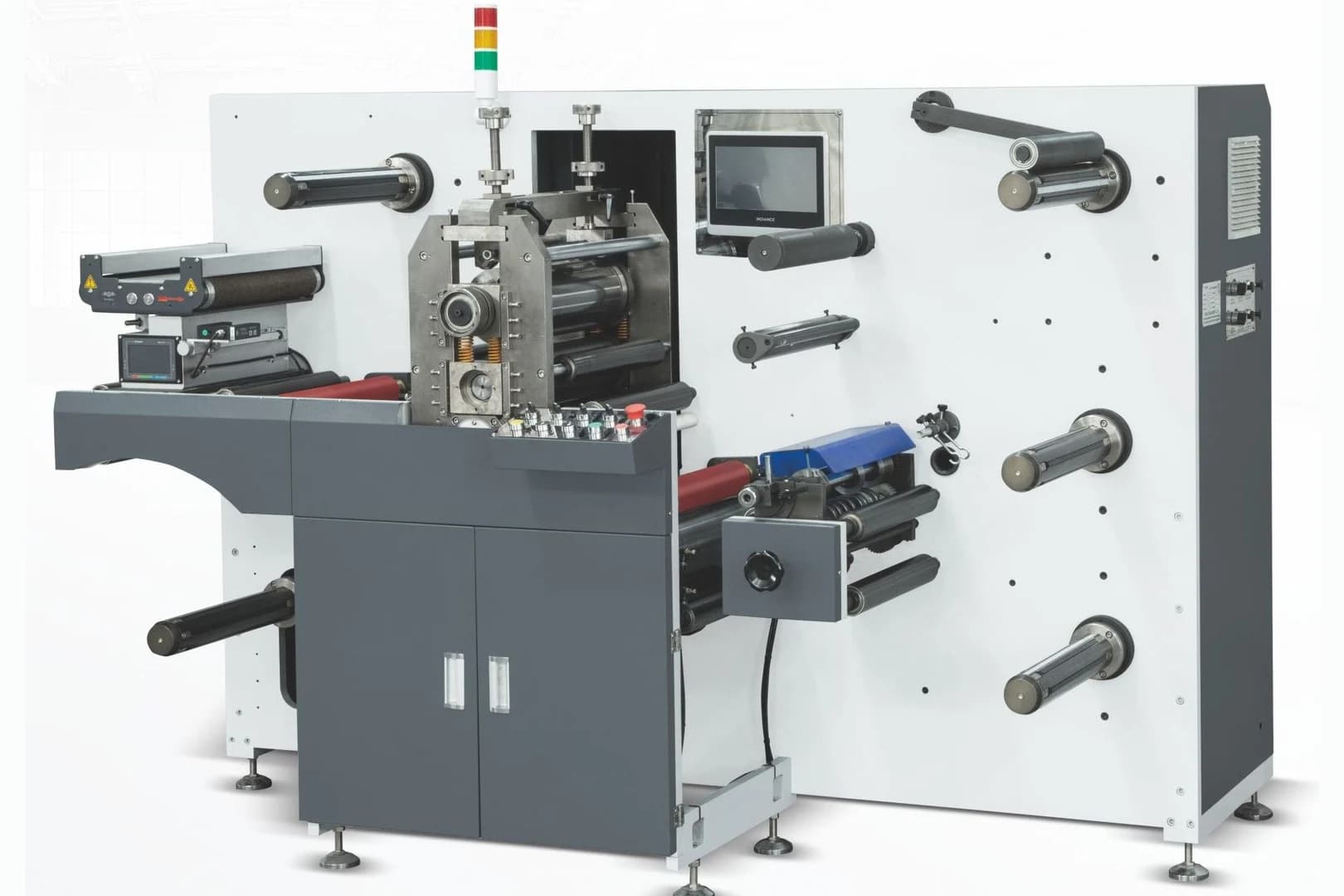

  • A combined rotary and intermittent die cutting machine
    • SR-350YM
    • SR-450YM

    Full Rotary and Intermittent Die Cutting Machine

    Rotary and intermittent die cutting in one machine, with colour tracking for printed and IMD labels.

    120m/min rotary speed

    • Carries both intermittent and full rotary die cutting units plus slitting.
    • Colour tracking system, which is the main difference from a plain rotary die cutter.
    • Advanced servo motor control with a straightforward operation panel.
    • Suited to die cutting printed labels and IMD labels.
    Technical parameters
    Technical parameters for the Full Rotary and Intermittent Die Cutting Machine
    ParameterSR-350YMSR-450YM
    Max speedRotary 120m/min, intermittent 65m/minRotary 120m/min, intermittent 65m/min
    Max web width350mm450mm
    Die cutting precision±0.15mm±0.15mm
    Max unwind diameter700mm700mm
    Max rewind diameter700mm700mm
    Material thickness20-300um20-300um
    Dimensions (LxWxH)2400 x 1365 x 1475mm2400 x 1465 x 14750mm
    Weight3600kg3800kg

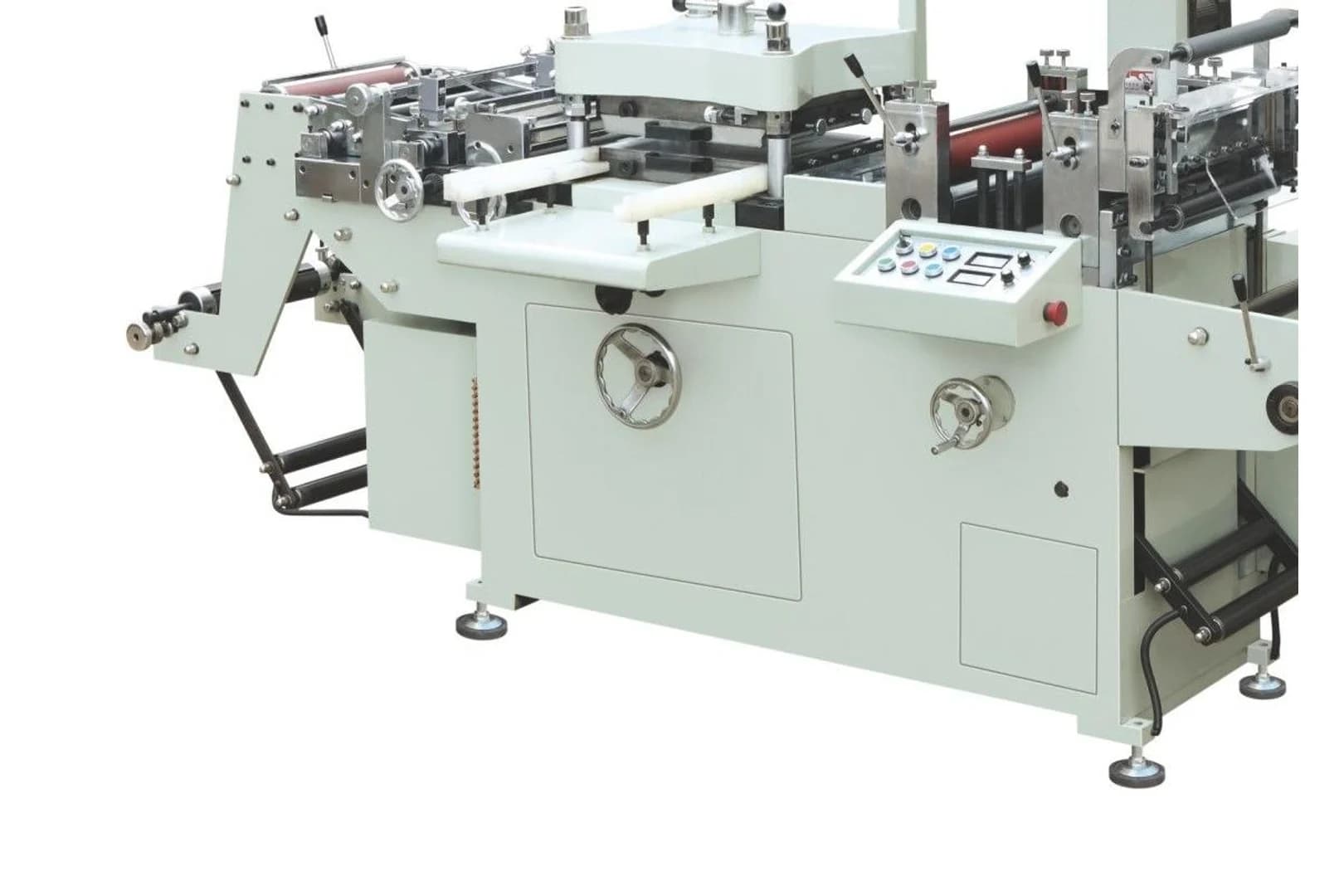

  • A medium speed automatic label die cutting machine
    • SR-350Z
    • SR-450Z

    Automatic Medium Speed Label Die Cutting Machine

    Flat bed die cutter with photoelectric tracking, cutting to sheets or back to roll.

    30-300impressions per minute

    • Standard cycle runs unwinding, die cutting, waste discharging, cutting into pieces, and rewinding.
    • Extended functions available: film covering, stamping, and punching.
    • Flat and flat structure with a computer servo system pulling the web.
    • Material tracked and positioned on both sides and longitudinally by photoelectric eyes.
    Technical parameters
    Technical parameters for the Automatic Medium Speed Label Die Cutting Machine
    ParameterSR-350ZSR-450Z
    Max feeding width350mm450mm
    Cutting area340 x 340mm440 x 440mm
    Cutting speed30-300 press/min30-300 press/min
    Positioning accuracy±0.1mm±0.1mm
    Power of main motor3kw5kw
    Dimensions (LxWxH)2900 x 1300 x 1400mm3100 x 1400 x 1500mm
    Unwinding/rewinding diameter650mm650mm
    Voltage380V380V
    Total power6kw8kw
    Weight1700kg2200kg

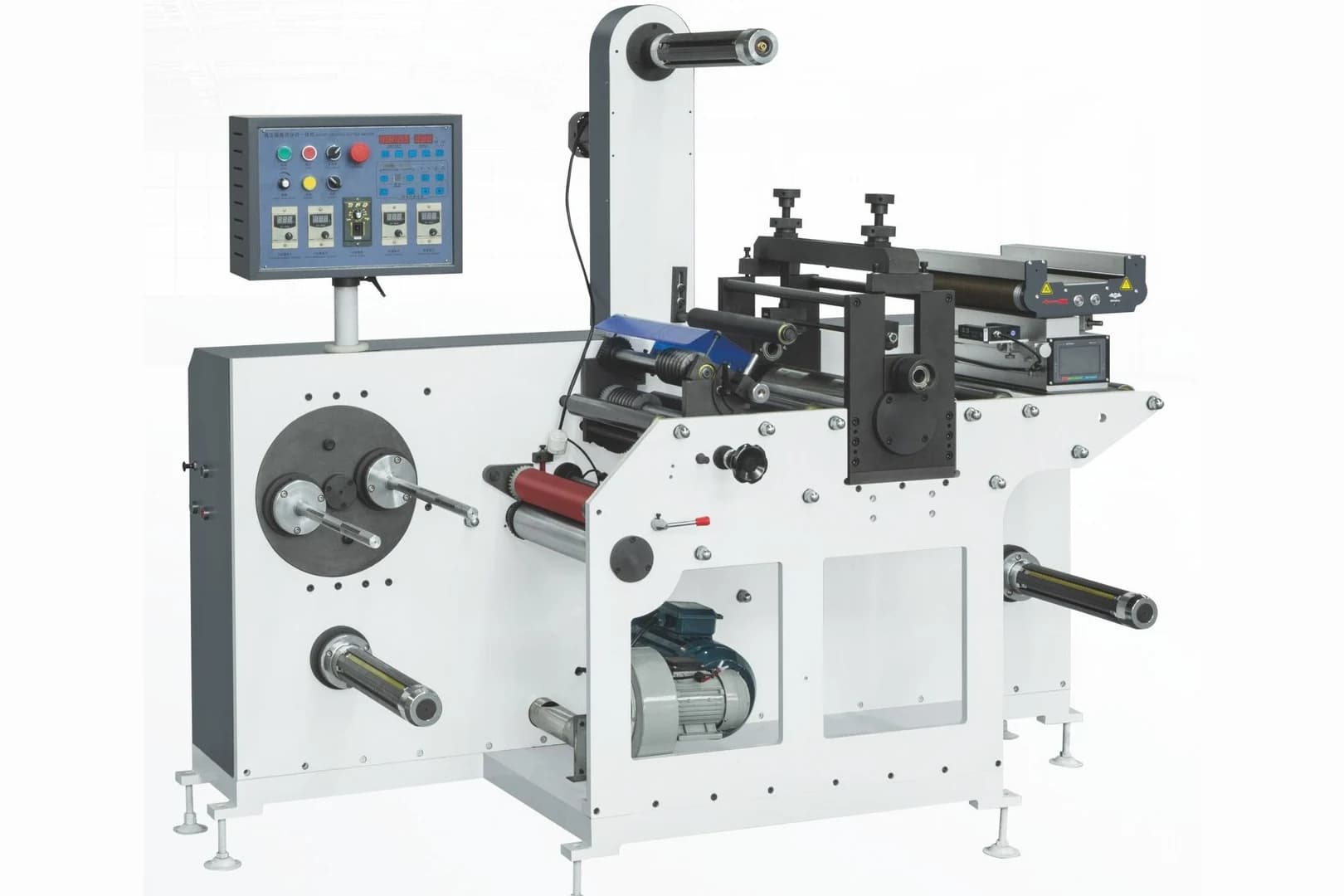

  • A rotary die cutting and slitting machine for blank labels
    • SR-350YB
    • SR-450YB

    Rotary Die Cutting and Slitting Machine

    Rotary die cutting station added to a slitting line, so blank labels are cut and rewound in one pass.

    120m/min cutting speed

    • Adds a circular pressing rotary die cutting station to the SR-350FII slitting machine.
    • Suited to die cutting and slitting blank self-adhesive labels, slit and rolled in one go from the die cutting knife.
    • Automatic meter counting, counting, length and quantity setting, and automatic stop.
    • Automatic inflation, magnetic powder tension, and dual winding shaft rotation and displacement.
    • Automatic deviation correction on unwinding, controlled optoelectronically.
    Technical parameters
    Technical parameters for the Rotary Die Cutting and Slitting Machine
    ParameterSR-350YBSR-450YB
    Cutting speed120m/min120m/min
    Max roll width350mm450mm
    Max unwinding diameter550mm550mm
    Max rewinding diameter550mm550mm
    Accuracy rate±0.1mm±0.1mm
    Weight1000kg1100kg
    Dimensions (LxWxH)2090 x 945 x 1640mm2090 x 1045 x 1640mm

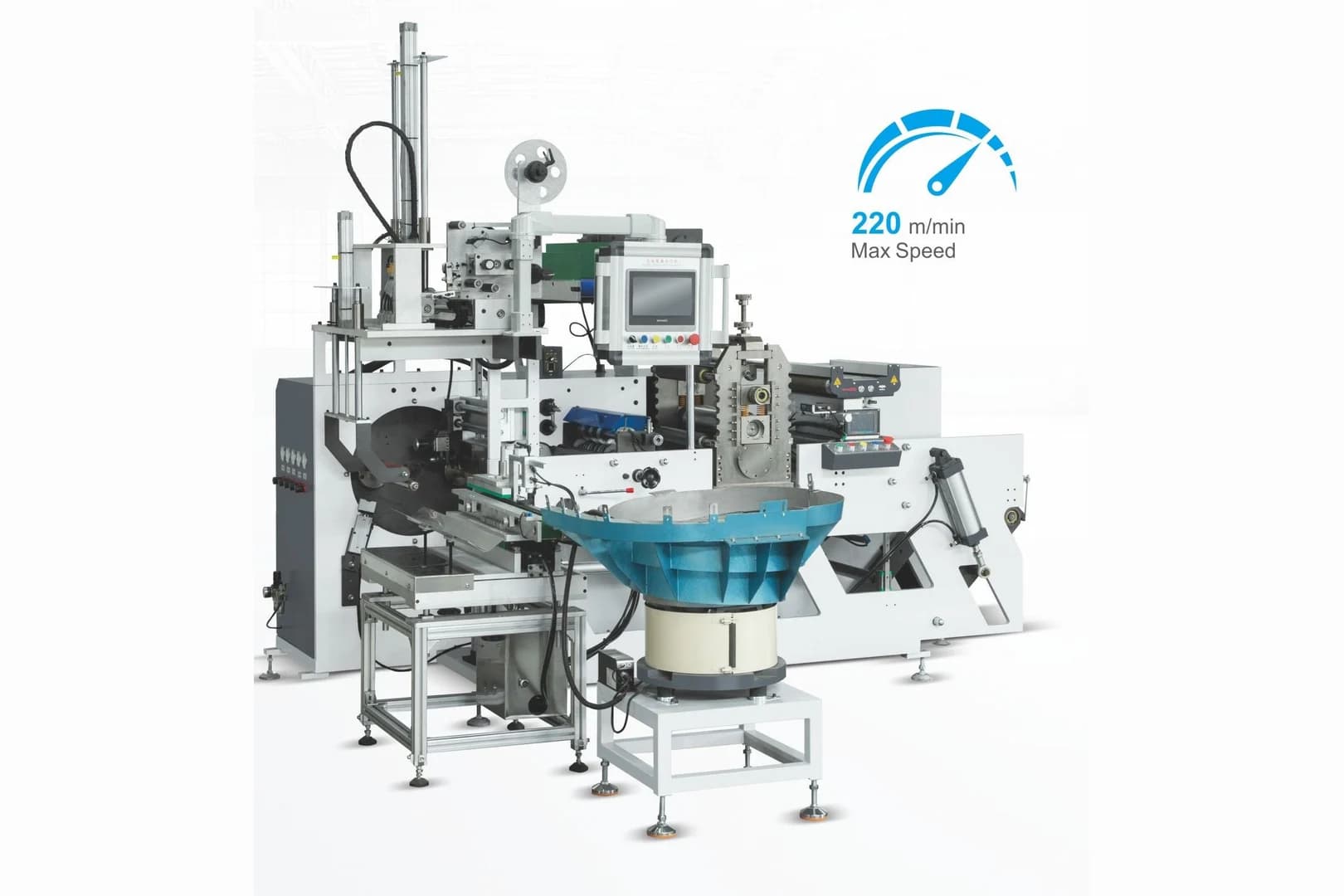

  • A fully automatic rotary die cutting, slitting, and rewinding line
    • SR-350YFQ
    • SR-450YFQ

    Fully Automatic Rotary Die Cutting, Slitting and Rewinding Machine

    Eight servo axes running die cutting through to labelled, counted finished rolls without an operator between stages.

    220m/min max speed

    • Eight servo motors under one control system.
    • Rotary die cutting, slitting, automatic loading, automatic paper core feeding, automatic cutting, automatic labelling, and automatic rewinding in one line.
    • Automatic meter counter, with paper cores taken without glue and no folding.
    • Waste removed by ultrasonic and servo motor.
    Technical parameters
    Technical parameters for the Fully Automatic Rotary Die Cutting, Slitting and Rewinding Machine
    ParameterSR-350YFQSR-450YFQ
    Max feeding width350mm450mm
    Max speed220m/min180m/min
    Position accuracy±0.10mm±0.10mm
    Max unwinder diameter800mm800mm
    Max rewinder diameter250mm250mm
    Voltage380V, 3 phase380V, 3 phase
    Total power9kw11kw
    Weight2500kg3000kg
    Dimensions (LxWxH)2690 x 3100 x 2310mm3140 x 3355 x 2460mm

Slitting

6 machines

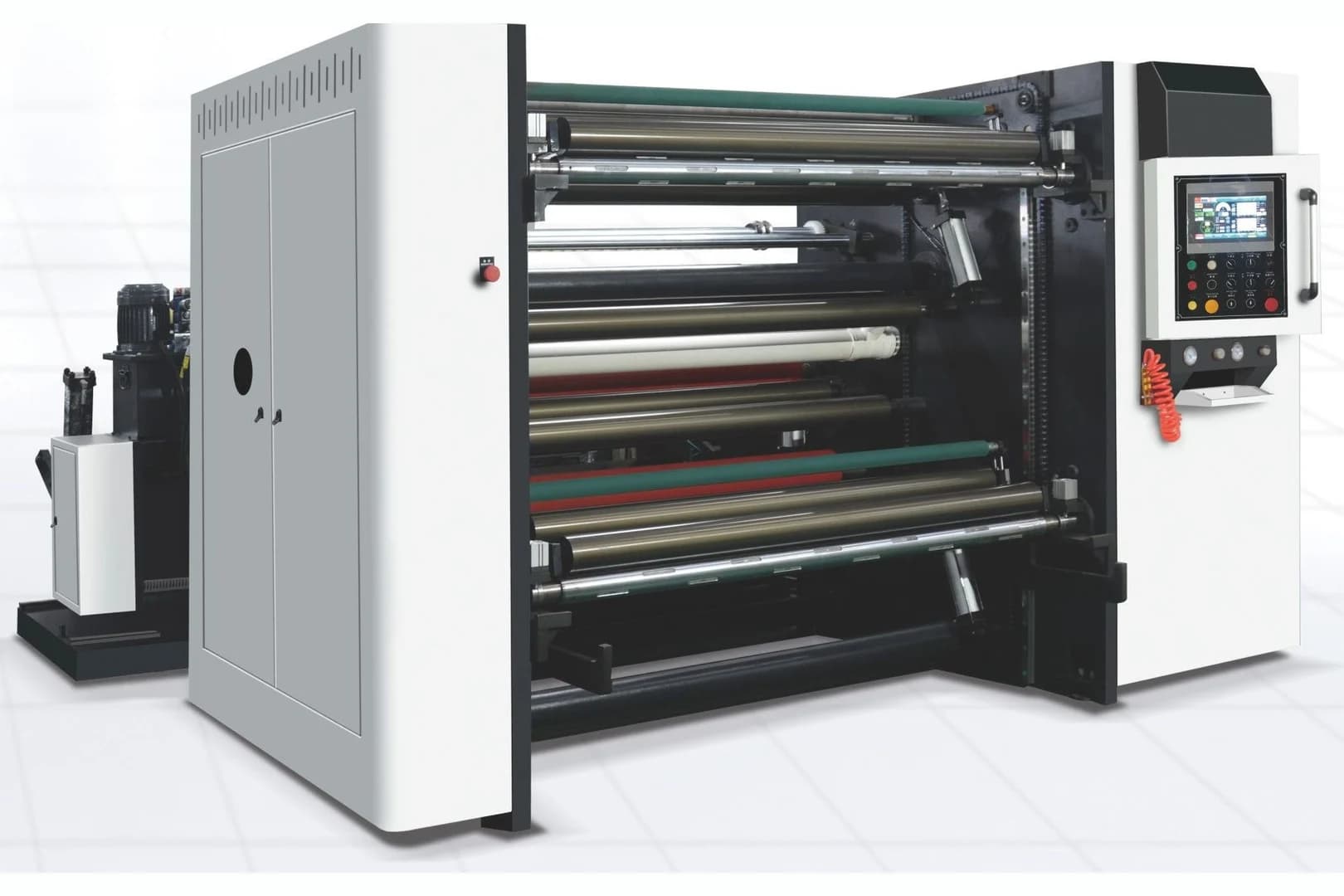

  • A high speed jumbo roll slitting machine
    • SR-1600

    Jumbo Roll Slitting Machine

    High speed jumbo roll slitter taking 1600mm parent rolls down to finished widths.

    50-400m/min slitting speed

    • Three servo motors under synchronised control, with automatic tape tension and centre plus surface rewinding together.
    • Frequency adjusted speed, holding a stable run as speed rises.
    • Automatic quantity counting, fixed length, alarm stop, and tension control.
    • Feeding roll on an air shaft for 3 inch (76mm) paper cores.
    • Rewinding edge position held by photocell control.
    • Circular knife trims the waste edge, extracted automatically by fan.
    • Automatic air shaft or hydraulic shaftless unwinding.
    Technical parameters
    Technical parameters for the Jumbo Roll Slitting Machine
    ParameterValue
    Slitting thickness20g/m2 to 500g/m2
    Raw material unwinding diameter1600mm
    Raw rewinding max diameter1000mm
    Slitting max width20-1600mm
    Rewinding air shaft diameter76mm, 2pcs
    Slitting precision±0.2mm
    Slitting speed50-400m/min
    Total power26kw
    Machine size4500 x 3200 x 1950mm
    Machine weight5500kg

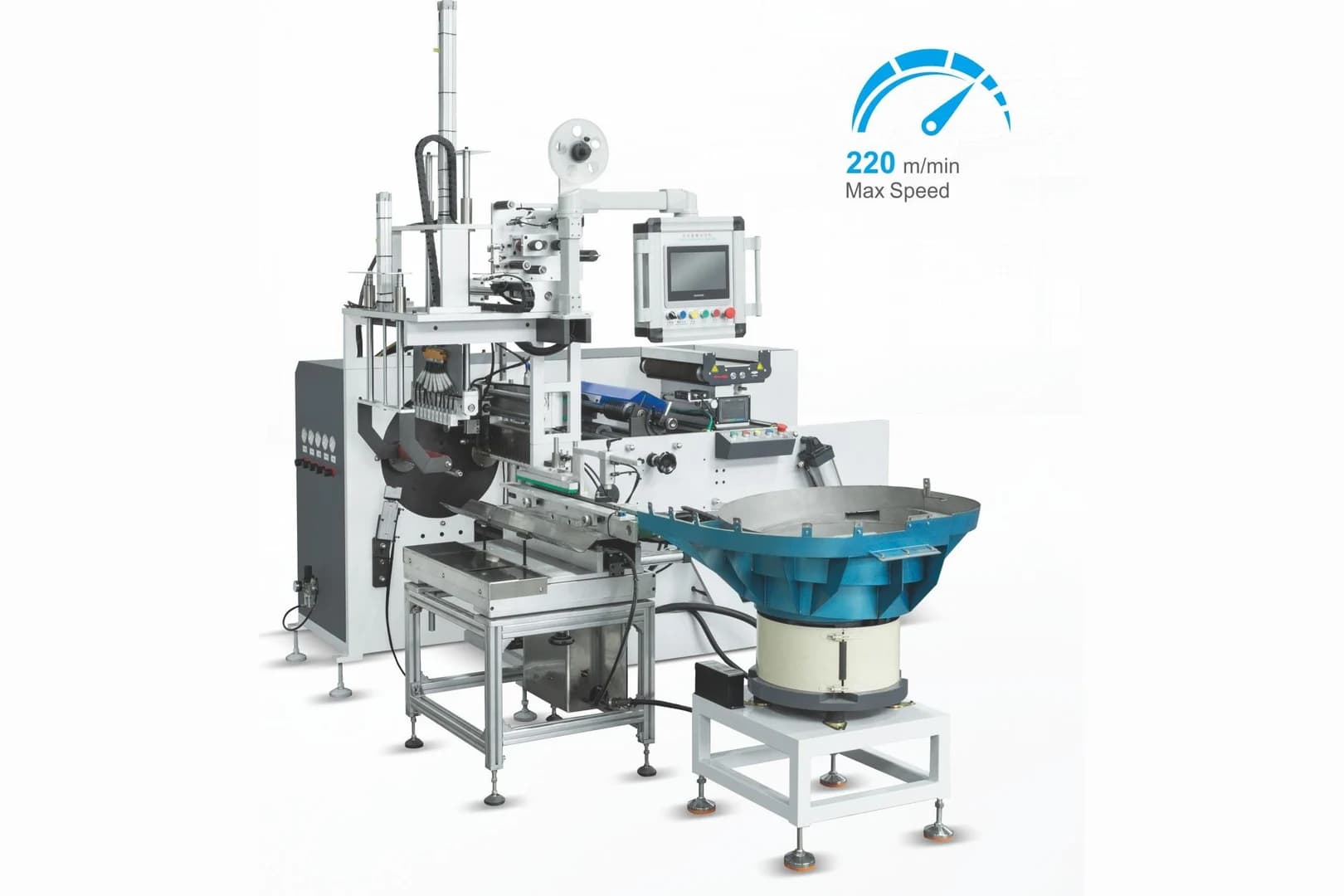

  • A fully automatic label slitting machine
    • SR-350FQ
    • SR-450FQ

    Fully Automatic Slitting Machine

    Seven servo axes handling slitting, core loading, cutting, labelling, and rewinding unattended.

    220m/min max speed

    • Seven servo motors under one control system.
    • Slitting, automatic paper core loading, automatic cutting, automatic labelling, and automatic rewinding.
    • Paper cores taken without glue and no folding.
    • Meter counter and quantity counter included.
    Technical parameters
    Technical parameters for the Fully Automatic Slitting Machine
    ParameterSR-350FQSR-450FQ
    Max feeding width350mm450mm
    Max speed220m/min220m/min
    Position accuracy±0.10mm±0.10mm
    Max unwinder diameter800mm800mm
    Max rewinder diameter250mm250mm
    Voltage220V, 1 phase220V, 1 phase
    Total power6kw8kw
    Weight1500kg1800kg
    Dimensions (LxWxH)2040 x 2855 x 2305mm2040 x 2955 x 2305mm

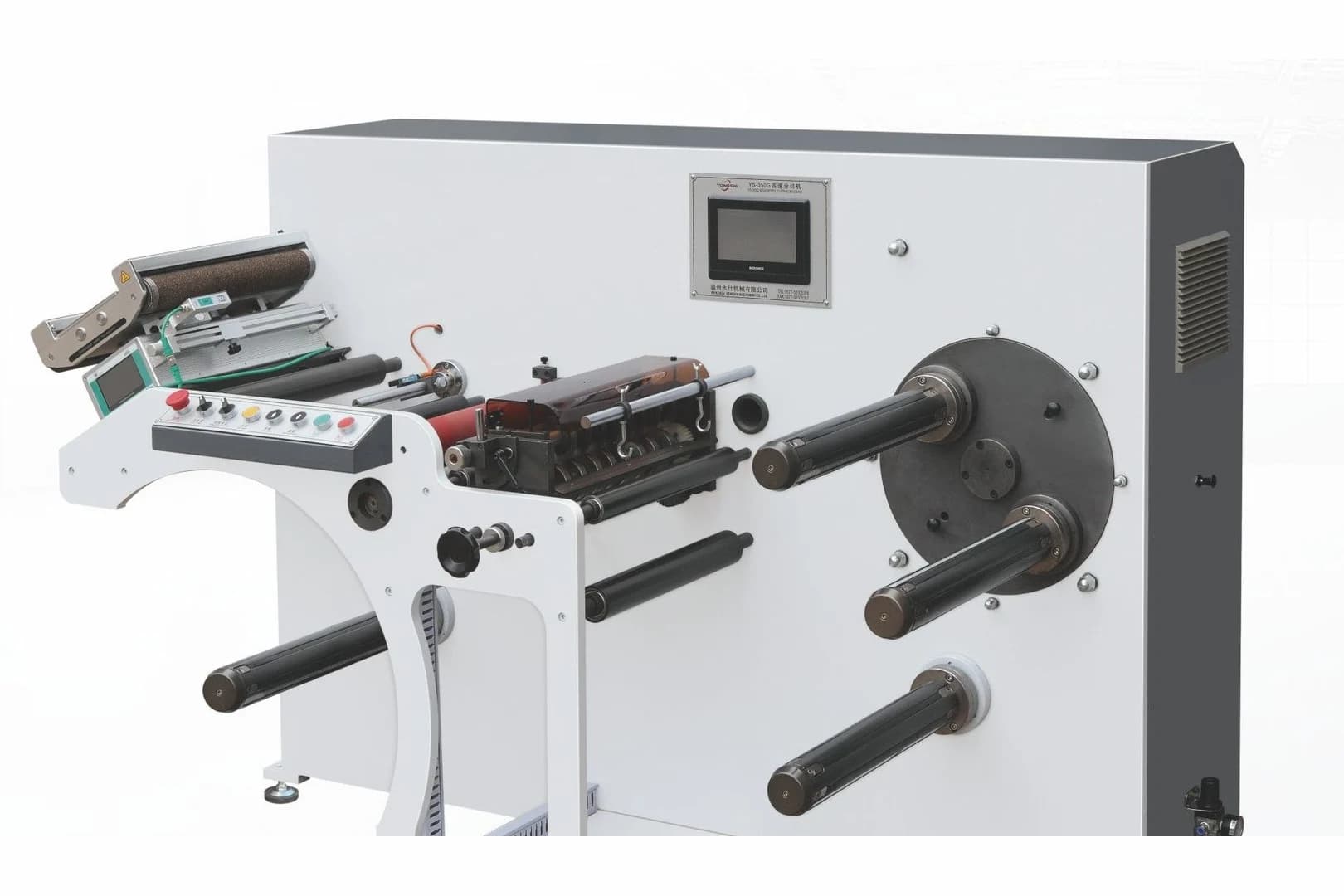

  • A high speed narrow label slitting machine
    • SR-350FG
    • SR-450FG

    High Speed Slitting Machine

    Narrow label slitter on full servo taper tension, running to 350m/min.

    350m/min max slitting speed

    • Unwinding on an independent uniform taper tension system, with preset automatic material reduction or parking.
    • Deviation correction by ultrasonic opposite edge guide.
    • Circular knife cutting mechanism with quick disassembly, optional exchange device, and high pressure vacuum waste suction.
    • Taper tension reeling and rotating device cut roll change time and hold label and core alignment through the change.
    • Counting system from a well known German brand, accurate to one thousandth. Transparent materials need a separate purchase.
    Technical parameters
    Technical parameters for the High Speed Slitting Machine
    ParameterSR-350FGSR-450FG
    Max slitting speed350m/min350m/min
    Max web width350mm450mm
    Min slitting width16mm16mm
    Blades installed8 sets8 sets
    Max unwinding diameter700mm700mm
    Max rewinding diameter600mm600mm
    Air supply0.8MPa0.8MPa
    Weight750kg850kg
    Dimensions (LxWxH)1915 x 1035 x 1225mm1915 x 1135 x 1225mm

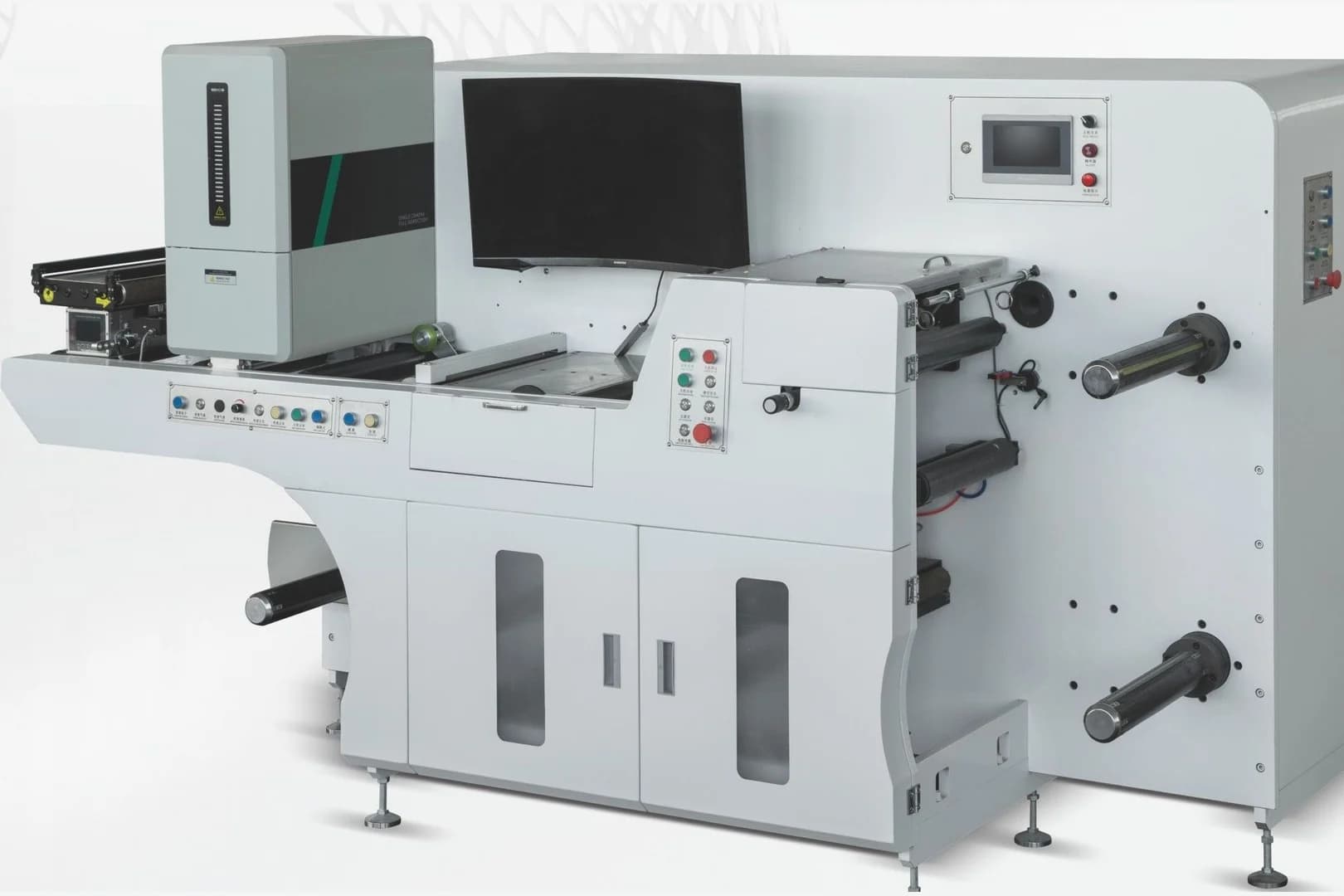

  • A high speed inspection and slitting machine with monitor
    • SR-370
    • SR-480
    • SR-550

    High Speed Inspection Slitting Machine

    Slitting line with an inspection station, so a roll is checked and cut in the same pass.

    300m/min machine speed

    • Optional inspection system.
    • Automatic tension control system.
    • Full servo motor and PLC control system.
    • Automatic web guide system.
    • Suitable for label, paper, and film.
    Technical parameters
    Technical parameters for the High Speed Inspection Slitting Machine
    ParameterSR-370SR-480SR-550
    Speed300m/min300m/min300m/min
    Max web width370mm480mm550mm
    Max unwind diameter700mm700mm700mm
    Slitter bladeRound knife or razor knifeRound knife or razor knifeRound knife or razor knife
    Min slitting width20mm20mm20mm
    Power8kw11kw14kw
    Dimensions2.6 x 1.35 x 1.4m2.6 x 1.46 x 1.4m2.6 x 1.53 x 1.4m
    Weight1900kg2100kg2300kg

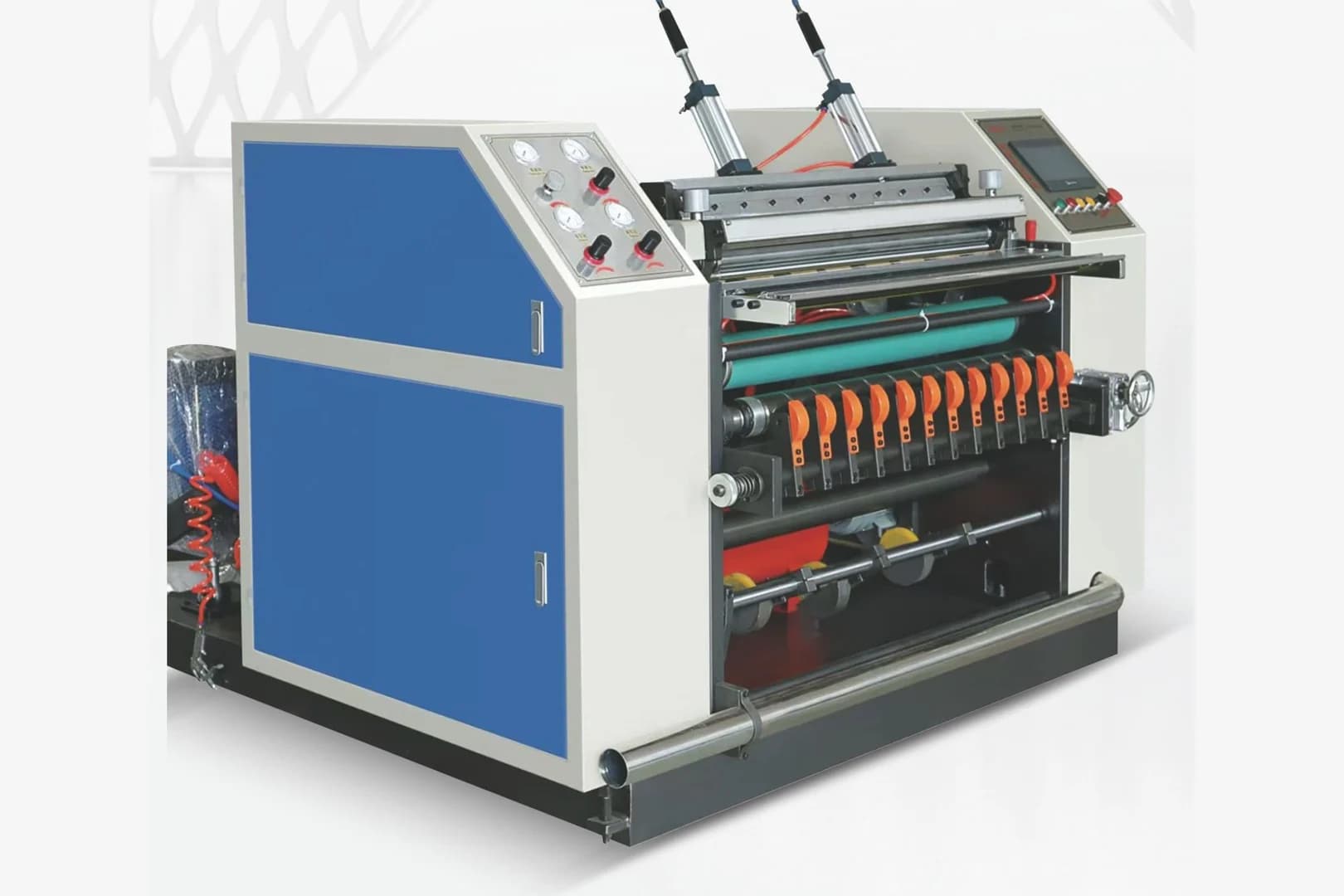

  • An automatic thermal paper slitting and rewinding machine
    • SR-900

    Automatic Thermal Paper Slitting and Rewinding Machine

    Built for thermal and till roll work, rewinding to small diameter rolls including coreless.

    150m/min max speed

    • Suitable for slitting thermal paper, bond paper, cash register paper, fax paper, POS paper, ATM paper, and other small ribbon rolls.
    Technical parameters
    Technical parameters for the Automatic Thermal Paper Slitting and Rewinding Machine
    ParameterValue
    Max parent web width860mm
    Max unwind diameter1000mm
    Max rewinding diameter150mm
    Max speed150m/min
    Unwinding shaft3 inch pneumatic air expanding shaft
    Rewinding shaft diameter0.5 inch, coreless 8mm
    Voltage3 phase 380V 50Hz
    Weight1000kg
    Overall dimensions2050 x 1600 x 1500mm

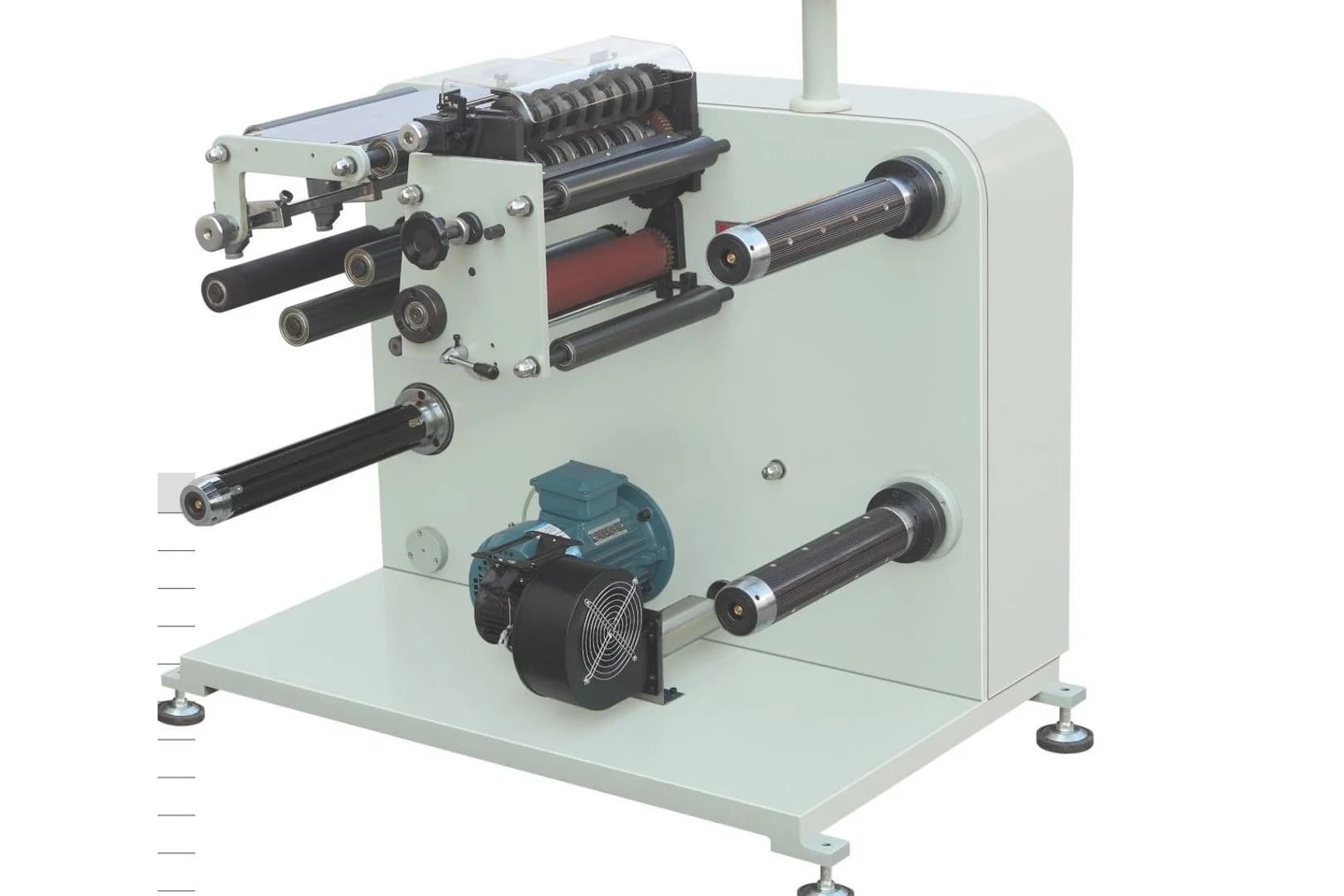

  • A compact automatic slitting machine
    • SR-350F
    • SR-450F

    Automatic Slitting Machine

    Compact slitter built to sit alongside an automatic die cutting machine on narrow paper.

    120m/min slitting speed

    • A supporting product for the automatic die cutting machine, suited to cutting narrow width paper.
    • Automatic meter setting, automatic shutdown, and automatic deviation correction.
    • Compact structure, fast, accurate cutting, and simple to operate.
    Technical parameters
    Technical parameters for the Automatic Slitting Machine
    ParameterSR-350FSR-450F
    Slitting speed120m/min120m/min
    Max width350mm450mm
    Max unwinding diameter500mm500mm
    Max rewinding diameter500mm500mm
    Min slitting width16mm16mm
    Max slitting width310mm410mm
    Accuracy rate±0.10mm±0.10mm
    Voltage220V220V
    Main motor power2kw2kw
    Weight550kg600kg
    Dimensions (LxWxH)1240 x 965 x 1300mm1240 x 1065 x 1300mm

Sheet and Tube Cutting

4 machines

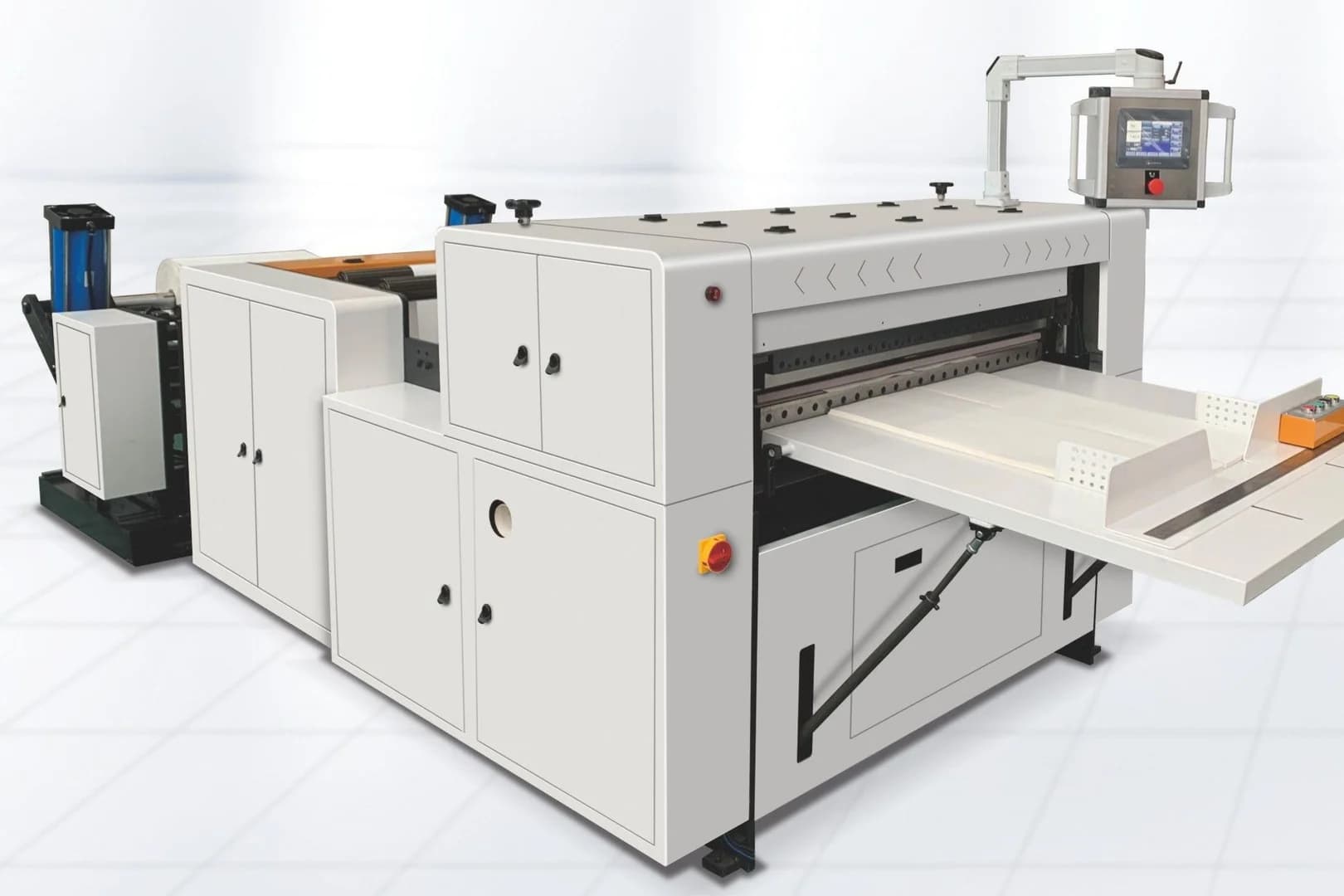

  • A wide format automatic sheet cutting machine
    • SR-1400

    Automatic Sheet Cutting Machine

    Wide format sheeter cutting reels down to stacked sheets up to 1400mm wide.

    20-180cuts per minute

    • Suitable for a wide range of paper including A4 and A3, hamburger paper, PVC, PET, and laminated film.
    Technical parameters
    Technical parameters for the Automatic Sheet Cutting Machine
    ParameterValue
    Max unwinding diameter1400mm
    Max cutting width1400mm
    Cutting length20-1000mm
    Machine speed20-180 times/min
    Slitting speed20-1600 times/min
    Paper GSM20-400g
    Cutting precision±0.2mm
    Ream height500pcs
    Total power12kw
    Machine weight4500kg / 5000kg
    Main power source380V/50Hz, 3 phase 4 wires
    Machine size (LxWxH)4500 x 2900 (3300) x 1800mm

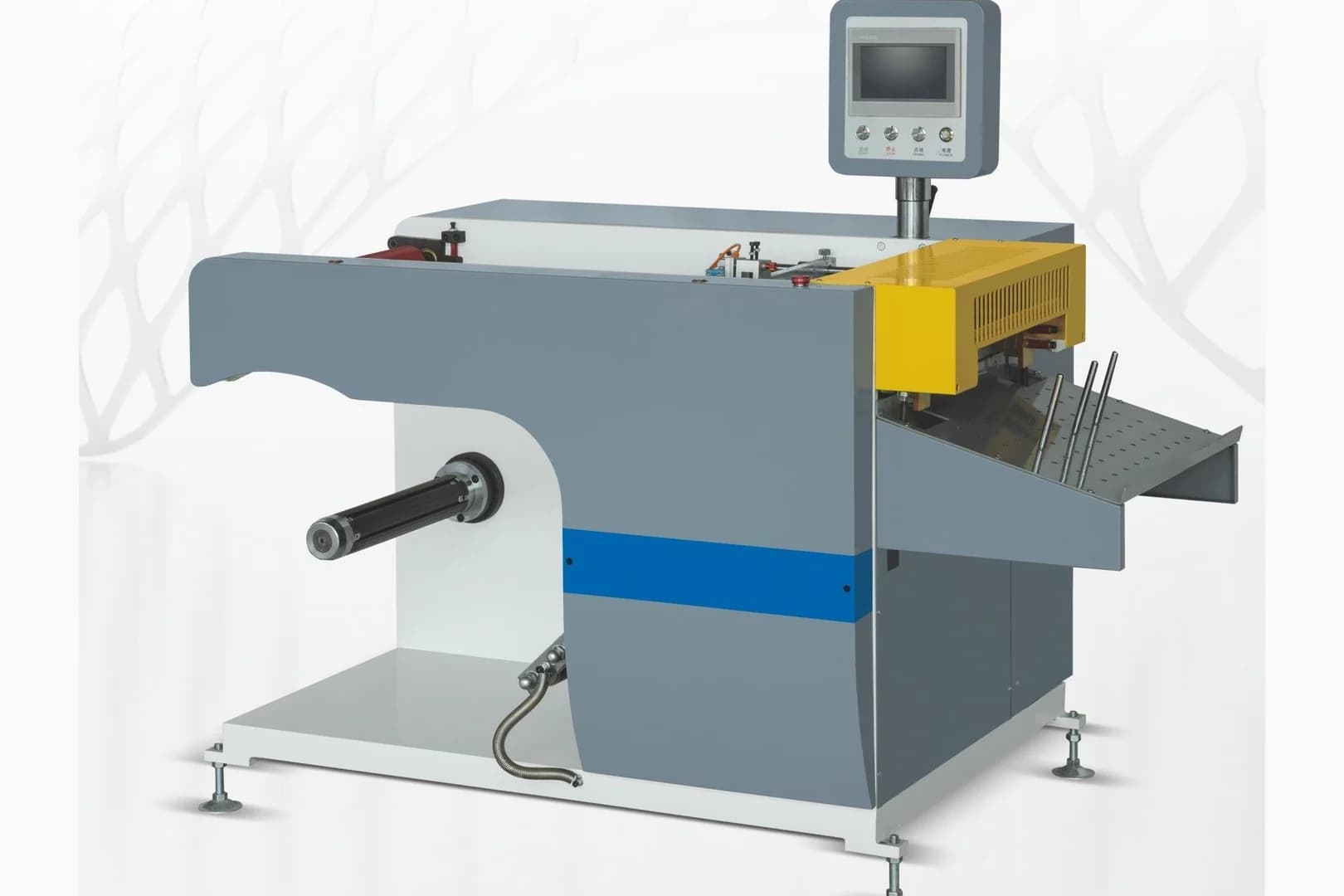

  • A narrow web sheet cutting machine
    • SR-350T
    • SR-500T

    Sheet Cutting Machine

    Narrow web sheeter that cuts to a printed colour mark or to a keyed length.

    300pieces per minute

    • Computer system and servo motor track the colour mark to cut, or cut to a length entered by the operator.
    • EPC web guide for automatic guiding.
    • Used on paper stickers, trademarks, laser anti-counterfeit trademark polyester film, PVC film, Mylar film, copper foil, aluminium foil, and foam.
    • Can run inline with other machines such as a flexo printing machine.
    Technical parameters
    Technical parameters for the Sheet Cutting Machine
    ParameterSR-350TSR-500T
    Max web width350mm500mm
    Max unwind diameter600mm600mm
    Max speed300 pcs/min300 pcs/min
    Positioning accuracy±0.10mm±0.10mm
    Main power4kw4kw
    Dimensions (LxWxH)1700 x 1000 x 1450mm1900 x 1150 x 1450mm
    Weight700kg750kg

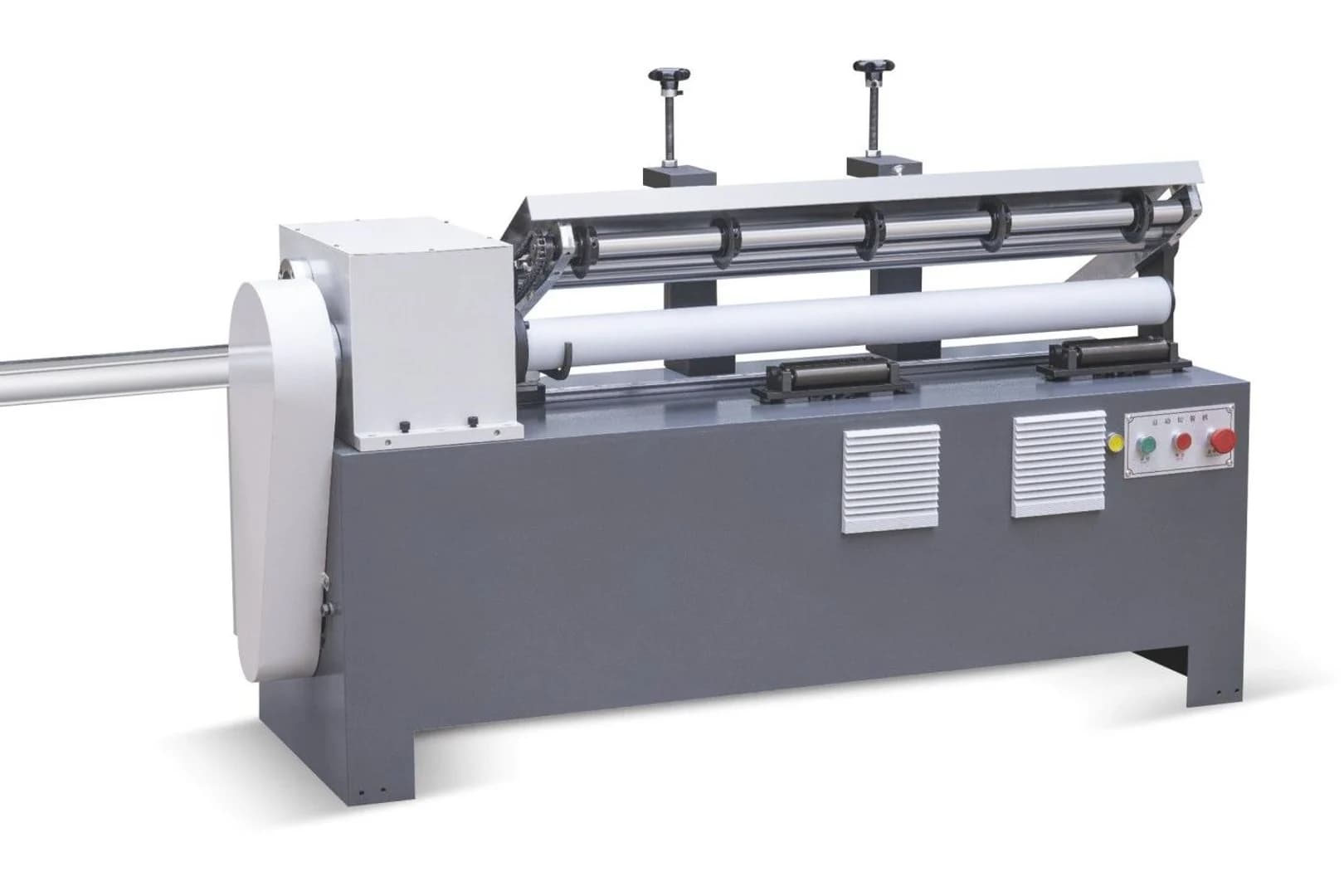

  • A paper and plastic tube cutting machine
    • SR-500

    Paper and Plastic Tube Cutting Machine

    Cuts paper and plastic tube stock into cores, five knives on one shaft.

    1-8cuts per minute

    • Standard 3 inch core shaft, with 1 inch and 2 inch optional.
    • Five knife sets cutting tube lengths up to 3000mm.
    Technical parameters
    Technical parameters for the Paper and Plastic Tube Cutting Machine
    ParameterValue
    Max tube length3000mm
    Max cutting width500mm
    Knife quantity5 sets
    Standard core shaft3 inch, optional 1 inch and 2 inch
    Cutting speed1-8 times/min
    Total power1.5kw
    Machine weight300kg
    Overall dimensions1.5 x 0.8 x 0.6m

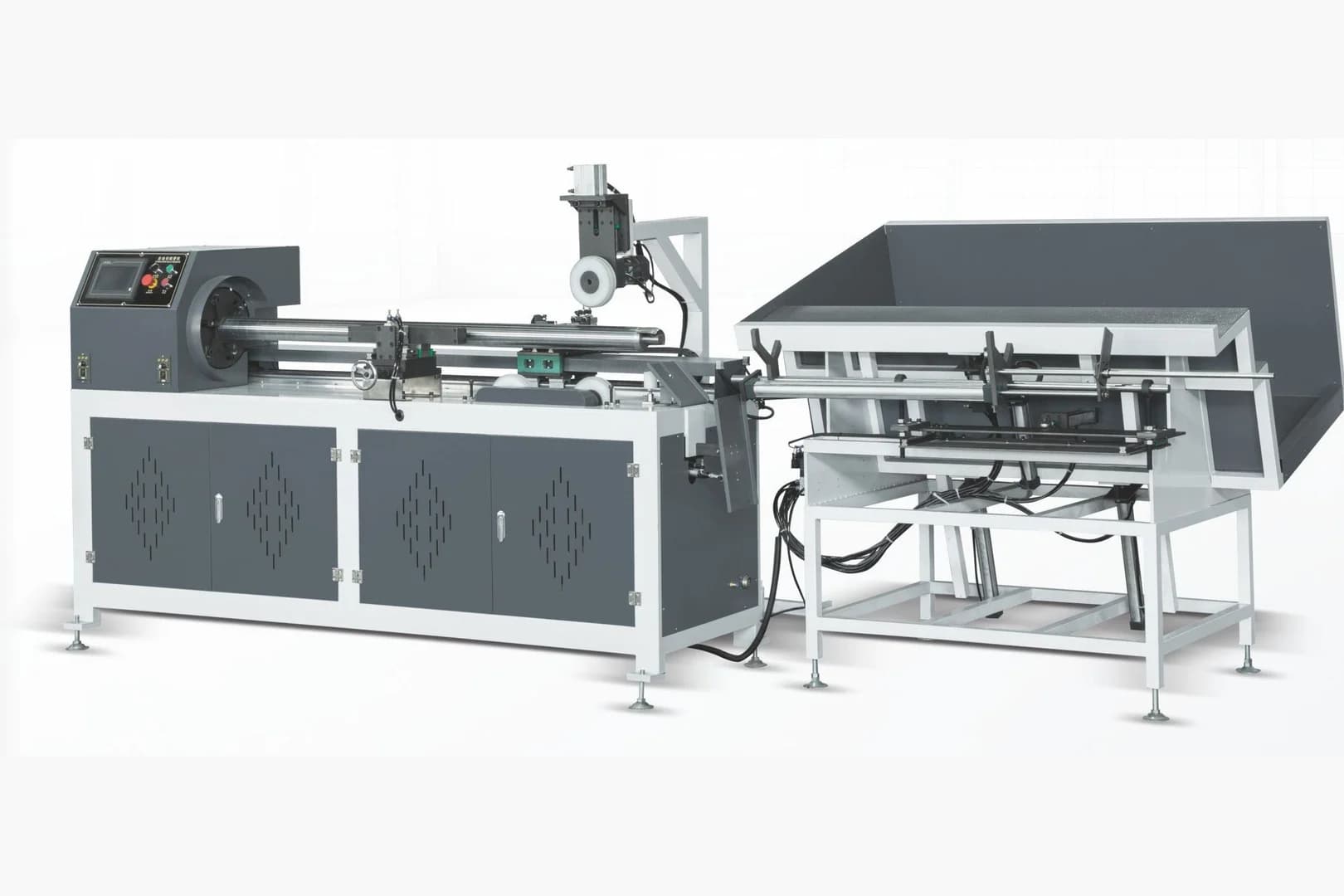

  • An automatic paper core cutting machine
    • SR-1300C

    Automatic Paper Core Cutting Machine

    Servo and PLC controlled core cutter, automatic from feeder through to discharge.

    • Dedicated to cutting paper cores, controlled by servo motor, PLC, and touch screen.
    • Every stage is automatic, from paper core feeder to cutting to discharging.
    Technical parameters
    Technical parameters for the Automatic Paper Core Cutting Machine
    ParameterValue
    Max feeding length1300mm
    Voltage220V, 1PH
    Gross power3kw
    Weight800kg
    Dimensions (LxWxH)3515 x 1360 x 1475mm

Rewinding and Inspection

2 machines

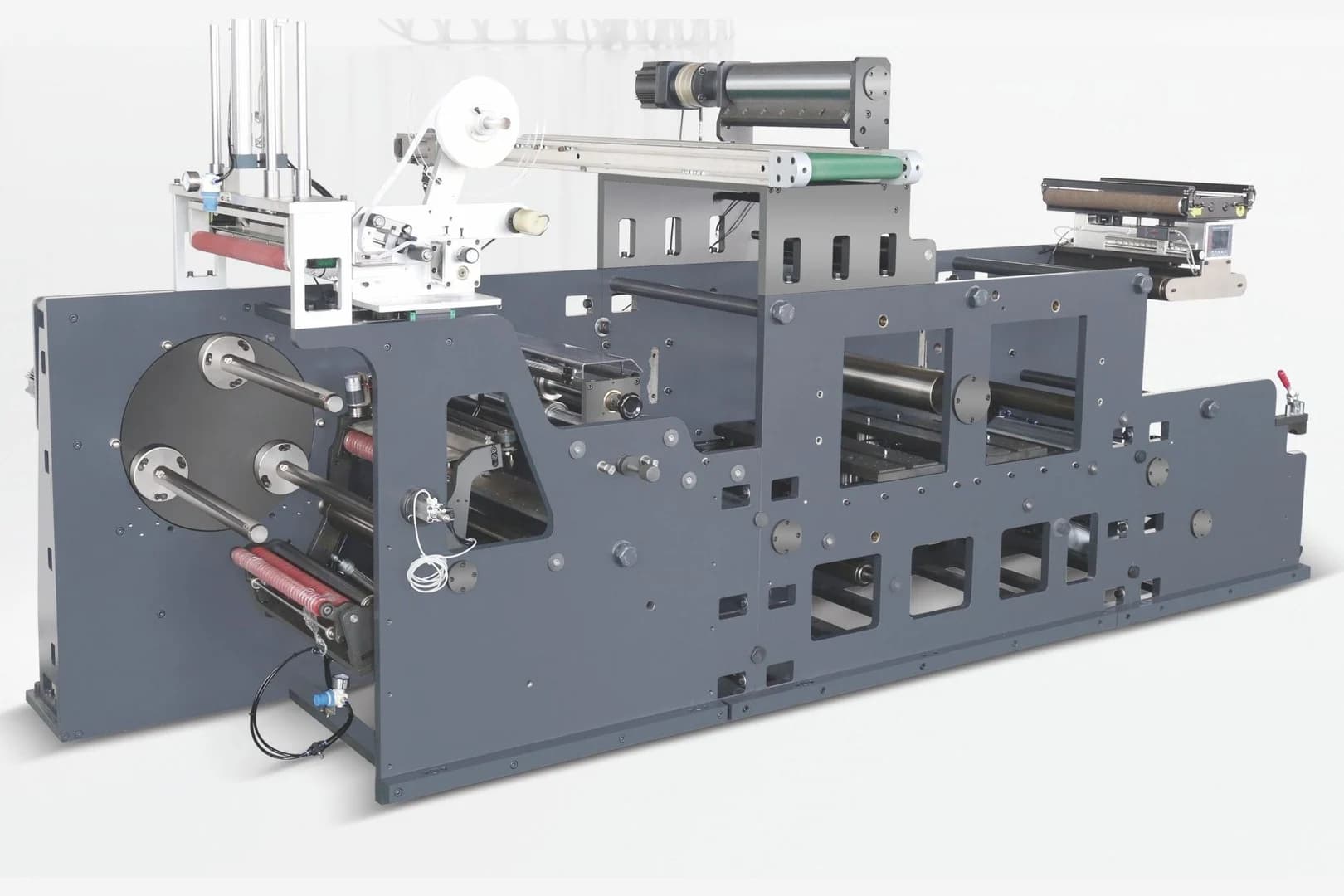

  • A three axis automatic rewinding line for finished label rolls
    • SR-350
    • SR-450
    • SR-570

    Automatic Rewinding Machine

    Three axis line taking core feeding through die cutting, slitting, labelling, and rewinding in one run.

    180m/min machine speed

    • Three axis automatic rotary die cutting, slitting, and rewinding machine.
    • Runs from automatic paper core feeder, to rotary die cutter, to slitter, to automatic waste rewind, to cutter, to automatic labelling, to automatic rewind, to discharge rollers, all in one line.
    Technical parameters
    Technical parameters for the Automatic Rewinding Machine
    ParameterSR-350SR-450SR-570
    Max speed180m/min180m/min180m/min
    Max rewind diameter200mm200mm200mm
    Min slitting width30mm30mm30mm
    Rewind shaft size1, 1.5, 3 inch1, 1.5, 3 inch1, 1.5, 3 inch
    Dimensions4.5 x 3.0 x 1.9m4.5 x 3.3 x 1.9m4.5 x 3.5 x 1.9m
    Weight3500kg4500kg5200kg
  • A label inspection rewinding machine
    • SR-350
    • SR-450
    • SR-550

    Label Inspection Machine

    Bench inspection rewinder for checking finished label rolls before they ship.

    70m/min inspection speed

    • Inspection speed to 70m/min across all three widths.
    • Runs on single phase AC220V, so it needs no three phase supply.
    Technical parameters
    Technical parameters for the Label Inspection Machine
    ParameterSR-350SR-450SR-550
    Inspection speed70m/min70m/min70m/min
    Max roll width350mm450mm550mm
    Max unwind diameter500mm500mm500mm
    VoltageAC220V ±10%AC220V ±10%AC220V ±10%
    Power1.5kw1.5kw2.2kw
    Dimensions0.9 x 0.62 x 0.96m0.9 x 0.72 x 0.96m0.9 x 0.82 x 0.96m
    WeightAbout 250kgAbout 270kgAbout 290kg

Specifying a machine

Tell us the web width, the material, and the output you need to hold, and we will work out which model fits and what the line around it has to look like.

Talk to us about machinery
